Air knives

MOS air knives: Highly efficient and economical solution for blowing with compressed air, cleaning, drying, cooling, material sorting, air curtains, to eliminate static electricity.

Air knives are devices that create a continuous flow of air with high capacity and speed over their entire length.

The main advantages of MOS air blades are low compressed air consumption, low noise level, high gain ratio and maintenance-free.
The airflow can be easily controlled, thus optimizing it for the specific application. The knives can be supplied with a special spacers that control the width of the blade opening, which affects the dynamic air pressure and its amount.

Their functions can be applied in the following industries
- food industry
- paper industry
- printing industry
- textile industry
- building industry
- wood industry
- plastics industry
- rubber industry
- electronics industry

Advantages of using air knives in industry:
- Thanks to their optimized shape, it provides a narrow outlet air flow with high force and speed (knife)
- Perfectly reduces air consumption when continuous airflow is required
- Airflow amplifier - significant increase in output current
- Simple airflow control: control the width of the opening
- Low operating noise level
- Low operating costs, no moving parts - maintenance-free operation
- Available in different materials and with different surface treatments
- Easy to install
- The ability to eliminate static electricity or the ability to measure the amount of air
- Wide range of accessories, such as holders and pneumatic accessories
DJPS

DJPS

Type: DJPS
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 8; 1 position
Material quality: Aluminum, stainless steel
Surface treatment: galvanized, special material on request
Downloading DJPS catalogueDownloading DJPS manual catalogue

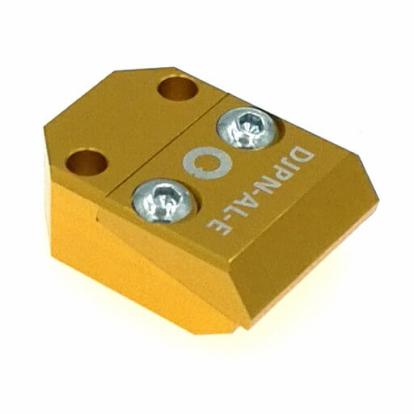

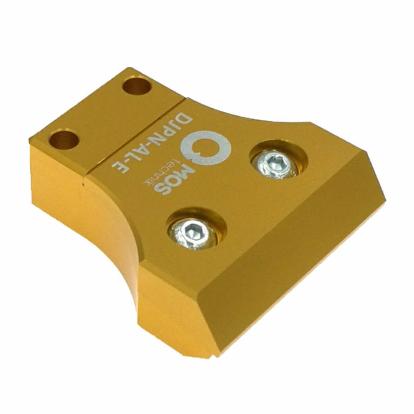

DJPN

DJPN

Type: DJPN
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; 1 position
Material quality: Aluminum, stainless steel
Surface treatment: galvanized, special material on request
Downloading DJPN catalogueDownloading DJPN manual catalogue

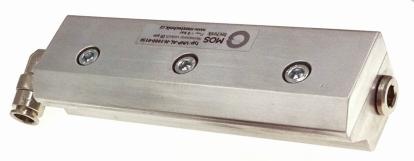

VNP

VNP

Type: VNP
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; 1 position
Material quality: Aluminum, stainless steel, fiberglass reinforced plastic
Surface treatment: galvanized, special material on request
Downloading VNP catalogueDownloading VNP manual catalogue

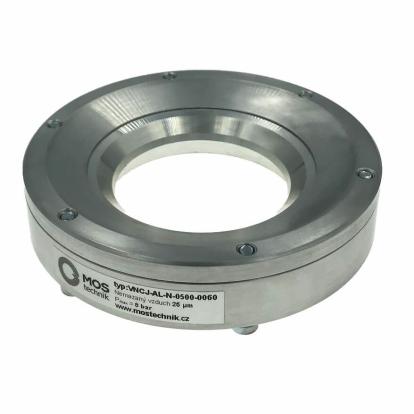

VNCJ – circular, one-piece

VNCJ – circular, one-piece

Type: VNCJ – circular, one-piece
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; 2 position
Material quality: Aluminum, stainless steel, fiberglass reinforced plastic
Surface treatment: galvanized, special material on request
Downloading VNCJ catalogueDownloading VNCJ manual catalogue

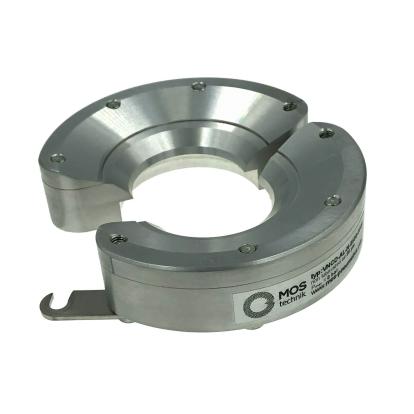

VNCD – circular, two-piece

VNCD – circular, two-piece

Type: VNCD – circular, two-piece
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; 2 position
Material quality: Aluminum, stainless steel
Surface treatment: galvanized, special material on request
Downloading mos-vncd-en.pdf catalogueDownloading VNCD manual catalogue

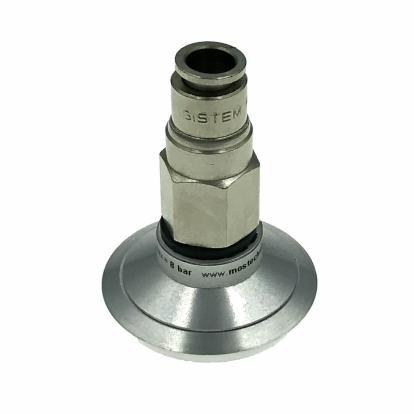

VNCI – circular, for blowing inner surface

VNCI – circular, for blowing inner surface

Type: VNCI – circular, for blowing inner surface
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; G1 / 8 (for size 30 mm) 1 position
Material quality: Aluminum, stainless steel
 Surface treatment: galvanized, special material on request
Downloading VNCI catalogueDownloading mos-vnci-manual-en.pdf catalogue

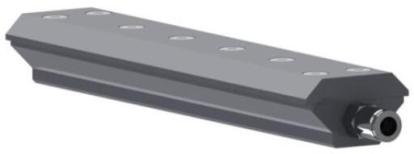

VNO – two-sided air knife

VNO – two-sided air knife

Type: VNO– two-sided air knife
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; 5 position
Material quality: Aluminum, stainless steel
Surface treatment: galvanized, special material on request
Downloading VNO catalogue

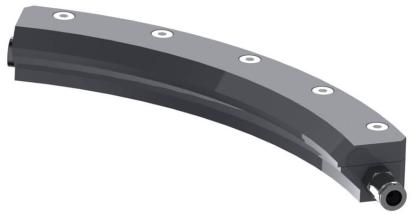

VNTC – C-shaped air knife

VNTC – C-shaped air knife

Type: VNTC – C-shaped air knife
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; 4 position
Material quality: Aluminum, stainless steel
Surface treatment: galvanized, special material on request
Downloading VNTC catalogue

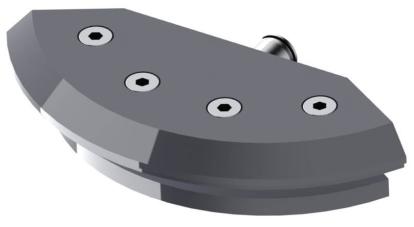

VNTD – D-shaped air knife

VNTD – D-shaped air knife

Type: VNTD – D-shaped air knife
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; 1-2 position
Material quality: Aluminum, stainless steel
Surface treatment: galvanized, special material on request
Downloading VNTD catalogue

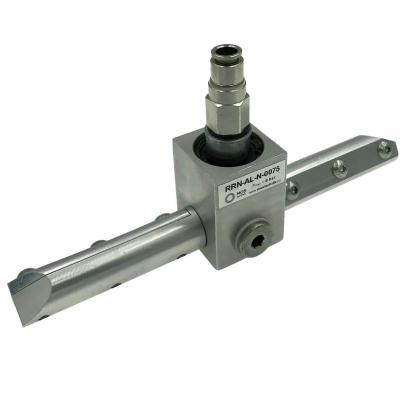

RRN – rotating air knife

RRN – rotating air knife

Type: RRN – rotating air knife
Medium: compressed air (filtered 25 µm)
Operating pressure: max. 8 bar
Pneumatic connection: G1 / 4; 1 position
Material quality: Aluminum, stainless steel
Surface treatment: galvanized
Downloading RRN catalogue

Check out our air knives during operation
